Nylon Cable Gland |
| |
|
 |
| |
Material: Nylon plastic(PA)
Protection level: IP67
Ambient temperature: Static -40oC---80oC
Supply color: Black, White or other color, please inquiry! |
| |
AG(PG) |
AG(M) |
AG(G) |

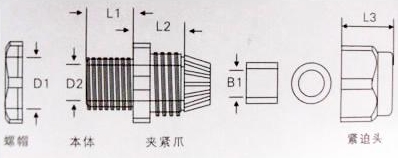

D1 |
D2 |
L1 |
L2 |
L3 |
B1 |
Cable Range |
PG-07 |
M12×1.5 |
|
10.9 |
8.1 |
10.4 |
14.5 |
10.5 |
6.4 |
3.5-6 |
PG-09 |
M16×1.5 |
|
15.3 |
12.2 |
9.9 |
15.8 |
17.2 |
8.6 |
4-8 |
PG-11 |
M18×1.5 |
|
17.9 |
14.6 |
10.6 |
15.5 |
17.5 |
10.7 |
5-10 |
PG-13.5 |
M20×1.5 |
G1/2 |
20.2 |
16.2 |
10.3 |
17.5 |
17.9 |
13.3 |
6-12 |
PG-16 |
M22×1.5 |
|
21.3 |
18.3 |
11.2 |
18.5 |
20.5 |
14.3 |
10-14 |
PG-19 |
M24×1.5 |
|
24.7 |
20.5 |
11.4 |
18.6 |
21.8 |
15.5 |
12-15 |
PG-21 |
M27×1.5 |
G3/4 |
26.9 |
21.8 |
11.6 |
18.7 |
23.1 |
16.7 |
13-18 |
PG-24 |
M30×1.5 |
G1 |
29.8 |
25 |
12.1 |
19.3 |
24.1 |
19.2 |
15-22 |
PG-27 |
M32×1.5 |
|
29.8 |
25 |
12.1 |
19.3 |
24.1 |
19.2 |
17-23 |
PG-29 |
M36×1.5 |
G11/4 |
35.1 |
29.8 |
12.4 |
22.6 |
24.8 |
24.8 |
18-25 |
PG-36 |
M46×1.5 |
G11/2 |
44.7 |
37.1 |
12.6 |
25.1 |
26.1 |
30.7 |
22-23 |
PG-42 |
M54×1.5 |
|
50.4 |
43.3 |
17.3 |
25.9 |
30.5 |
35.6 |
30-38 |
PG-48 |
M60×1.5 |
|
56.1 |
48.2 |
20.9 |
28.1 |
31.5 |
41.4 |
34-44 |
PG-63 |
|
G2 |
71 |
63.5 |
27.5 |
31.5 |
43.5 |
55 |
42-54 |
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
|
|
